Description:

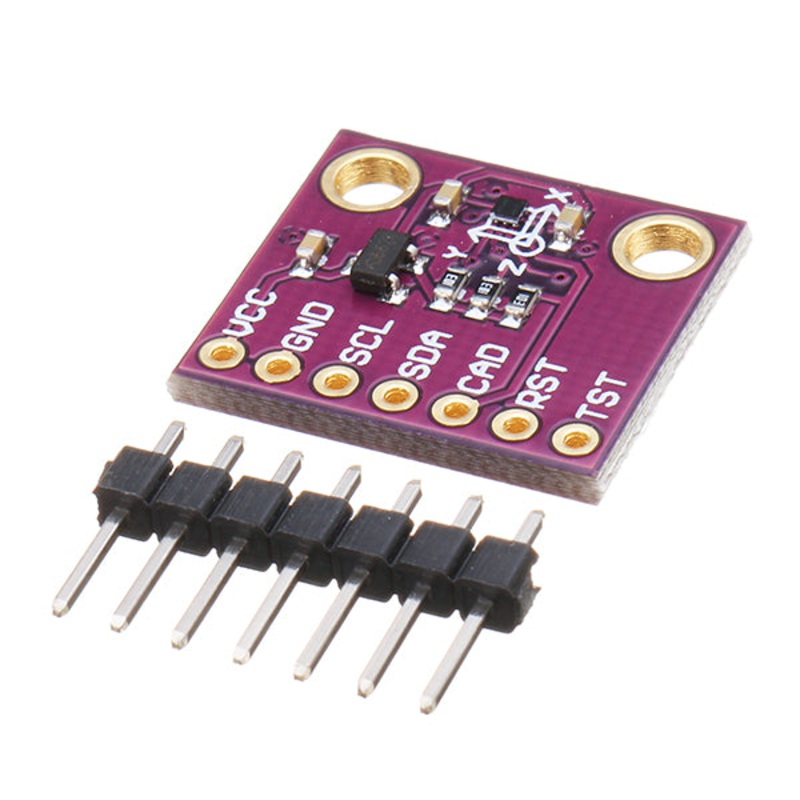

CJMCU – 9911 high sensitivity of hall sensor technology of triaxial electronic compass.
The most suitable for navigation using cell phones and other portable devices to walk city.

Function:

Three axis magnetometer device for beidou application
Built-in Analog-to-digital converter magnetometer data
14 data for every three axial magnetic components
Sensitivity: 0.6 uT/LSB (typical values
serial interfaceI2C bus interface
Standard, fast and high speed mode (2.5 MHz) compatible with philips I2C specification version 2.1.

Operating mode:

Power off, a single measurement, continuous measurement, self test and fuse ROM access
Used to measure the data preparation. Functional data ready
Magnetic sensor overflow monitoring function
The built-in internal clock oscillator

No specific technical support
Power on reset circuit
Self-test function of the internal magnetic source

Package included:

3 xCJMCU-9911 AK09911C Geomagnetic Hall Sensor
